Options

General

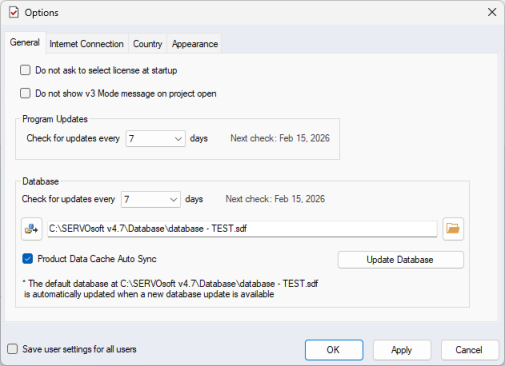

The 'General' tab allows users to configure if they want to see the v3 Mode warning message each time a v3 project is opened. The program and database updates check frequency is also specified as well as the path to the active database file. The database file can be on a local drive or a network drive.

When a network database file is selected, the user is prompted to copy it locally. The program always works with a local database file for three reasons. First, it offers better performance. Second, if the user is disconnected from the network, the program can still use the most recent local working copy. Third, if a user opens a project with product data that is not in the database, the project product data can be stored in the local working database. This 'uncontrolled' product data is not stored in the network database file, which is shared by multiple users. Any changes to the network database file require that the database administrator copy it locally to his computer, then add and/or modify the product data as needed, and then copy it back to the network drive for others to use. Every time the program starts, the program checks if the network database file has changed. If it has changed, the user is prompted to copy it locally.




Internet Connection

The 'Internet Connection' tab allows users to configure the proxy server parameters if they are located behind their company proxy server. Speak with your IT person to obtain the needed parameters.




Appearance

The 'Appearance' tab allows users to specify if they want to see the tooltips when hovering over an item, the maximum window size and change the image scaling. These features are of particular interest to those who perform training using a projector as well as those who create training videos.
